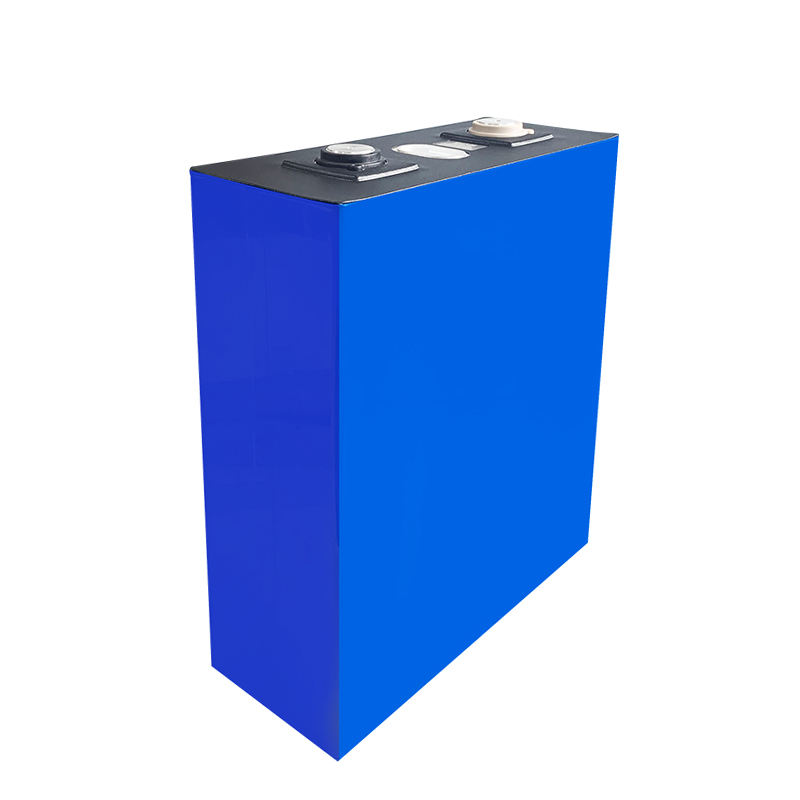

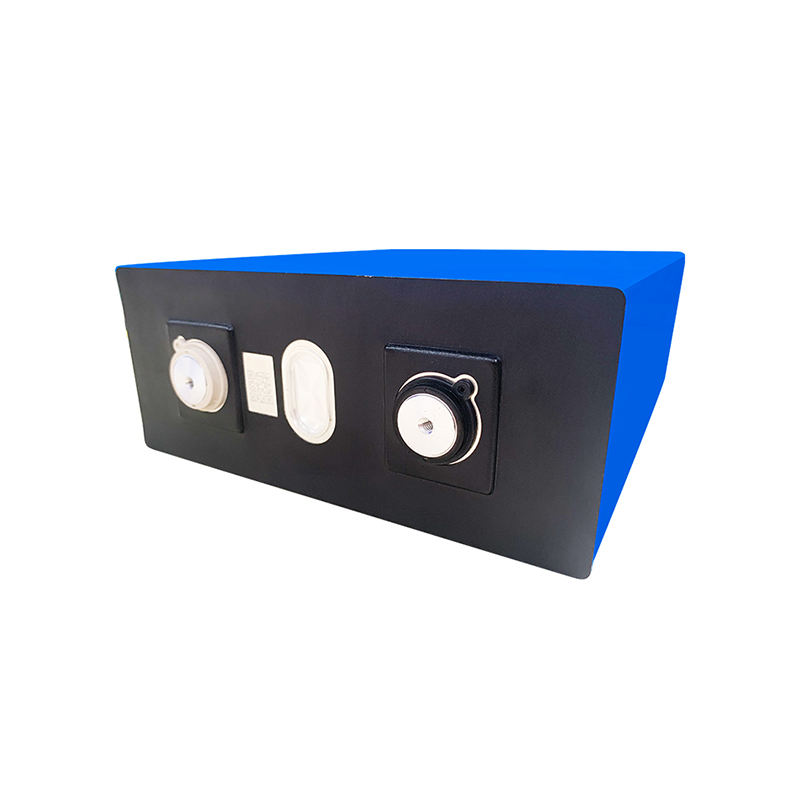

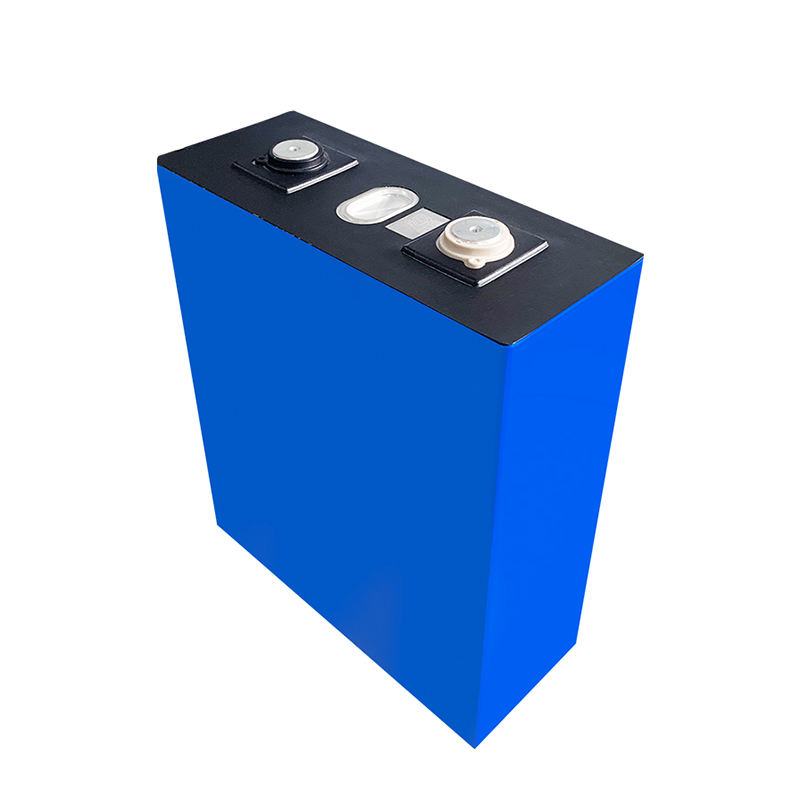

CATL 100Ah 280Ah 314Ah 587Ah CELLS

Parameter details

Nominal Capacity (Ah): 280Ah

Nominal Voltage (V): 3.2V

Standard Cycle (times): 8000 times

Weight (Kg): 5.45±0.08Kg

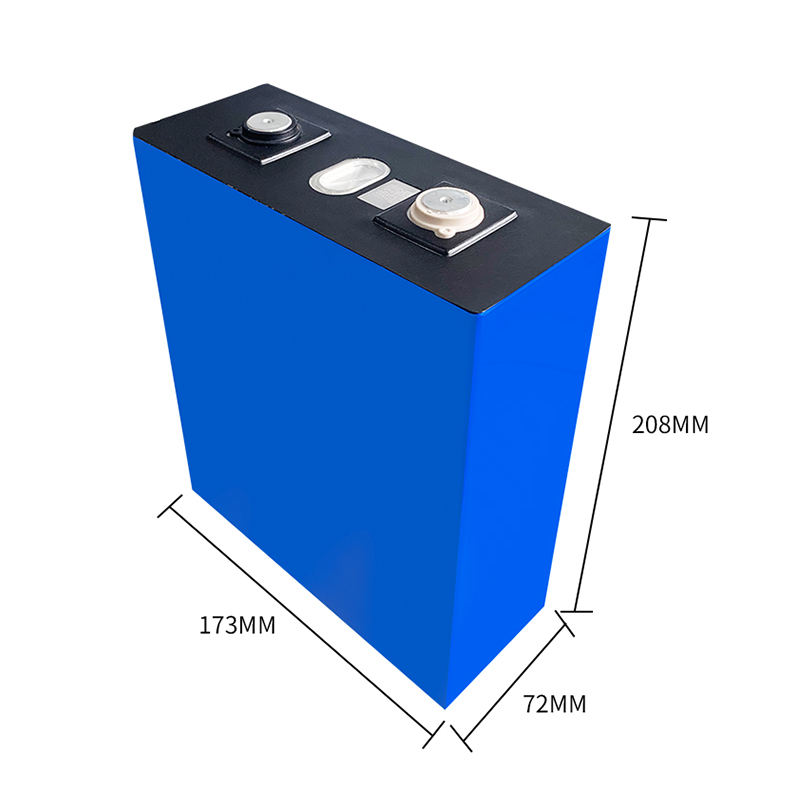

Length * Width * Height (mm): 71.6*174.3*207.3

Discharge rate: 1P

Charging rate: 1P

Energy density: 346Wh/L

Internal Resistance (1KHz): 0.12±0.05mΩ

Operating temperature (charging): 0~60℃

Operating temperature (discharge): -20~60℃

Storage temperature: -30~60℃

Charging limits voltage: 2.5~3.65V

Industry applications: Power energy storage, commercial and industrial energy storage, outdoor power supplies, residential energy storage, UPS uninterruptible power supplies, base station energy storage, AIDC

Product details

Product Features
* Genuine Grade A lithium battery cells, brand new
* Light weight and high performance with 540A continuous discharge
* Small internal resistance
* High energy density, low self-discharge
* Pollution free, long cycle life
* No memory effect
* Existing stock for short delivery time.
* OEM orders are available (battery pack, battery with spot welding ect.)

Safety instructions
Stop charging the battery if charging isn't completed within the specified time.
Stop using the battery if the battery becomes abnormally hot, order, discoloration, deformation, or
abnormal conditions is detected during use, charge, or storage.
Keep away from fire immediately when leakage or foul odors are detected. If liquid leaks onto your
skin or cloths, wash well with fresh water immediately.
If liquid leaking from the battery gets into your eyes, don't rub your eyes and wash them with clean
water and go to see a doctor immediately.
If the terminals of the battery become dirty, wipe with a dry cloth before using the battery.
The battery can be used within the following temperature ranges. Don't exceed these ranges.
The operating temperature is based on the cell surface temperature in hottest position in pack.
Charge temperature ranges : 0ºC ~ 60ºC
Discharge Temperature ranges : -20ºC ~ 60ºC
Store the battery at temperature below 45ºC
Cover terminals with proper insulating tape before disposal.
